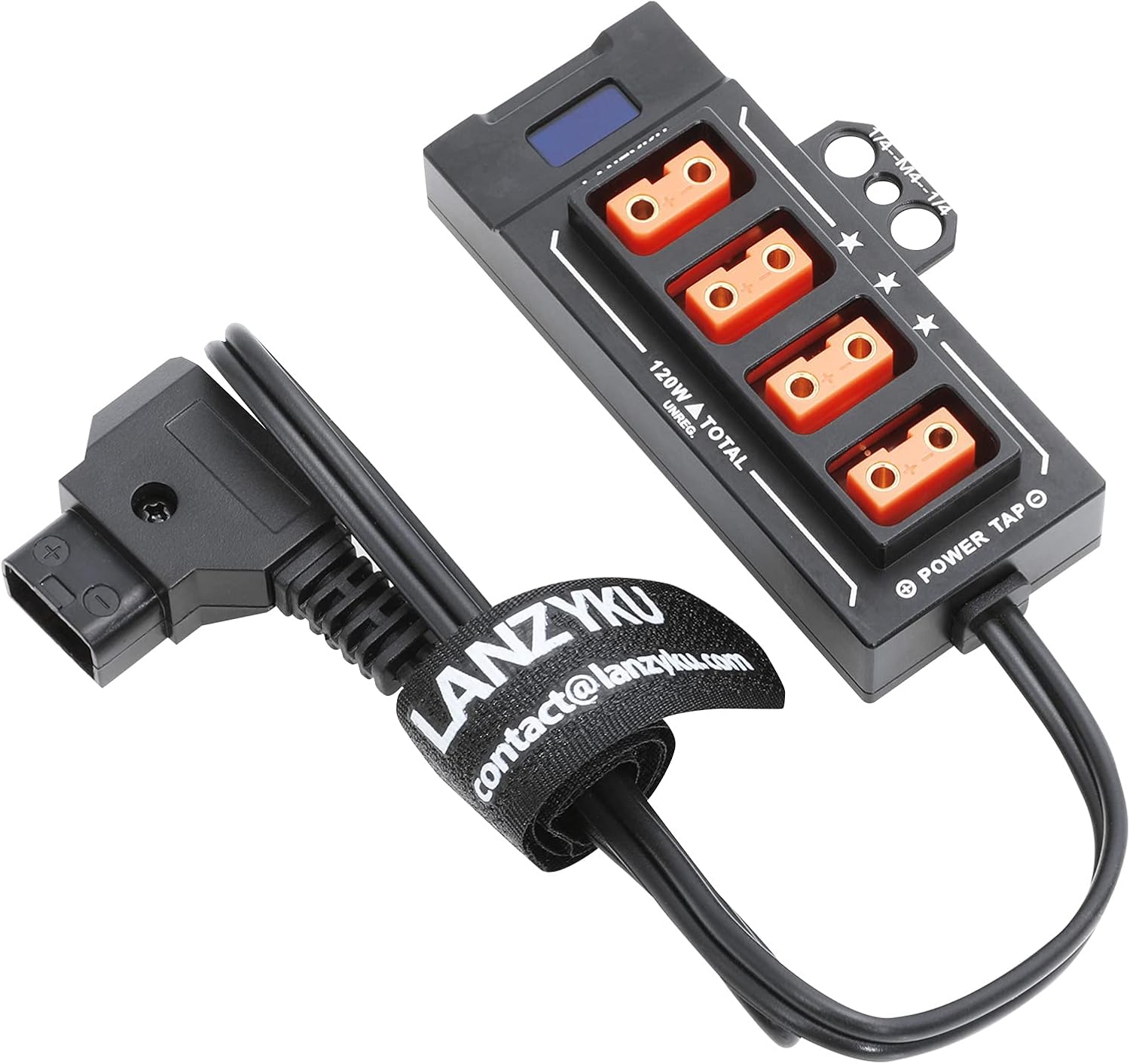

Name: Compact 1x4 P-Tap Splitter with Voltage and Amps Display, Aluminum Alloy, Pack of 2 V757
Brand: My Store
SKU: P353532568622207004
Price: 27.90 USD
Availability: InStock

Compact 1x4 P-Tap Splitter with Voltage and Amps Display, Aluminum Alloy, Pack of 2 V757

$27.90 $96.89

Shipping calculated at checkout.

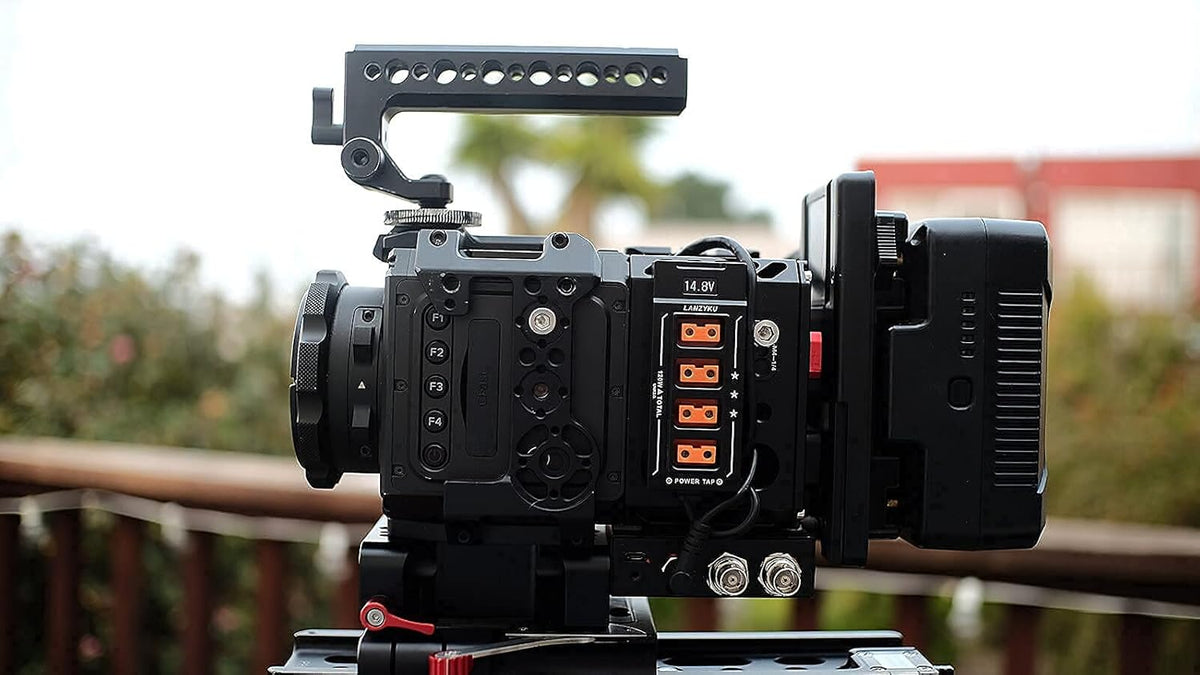

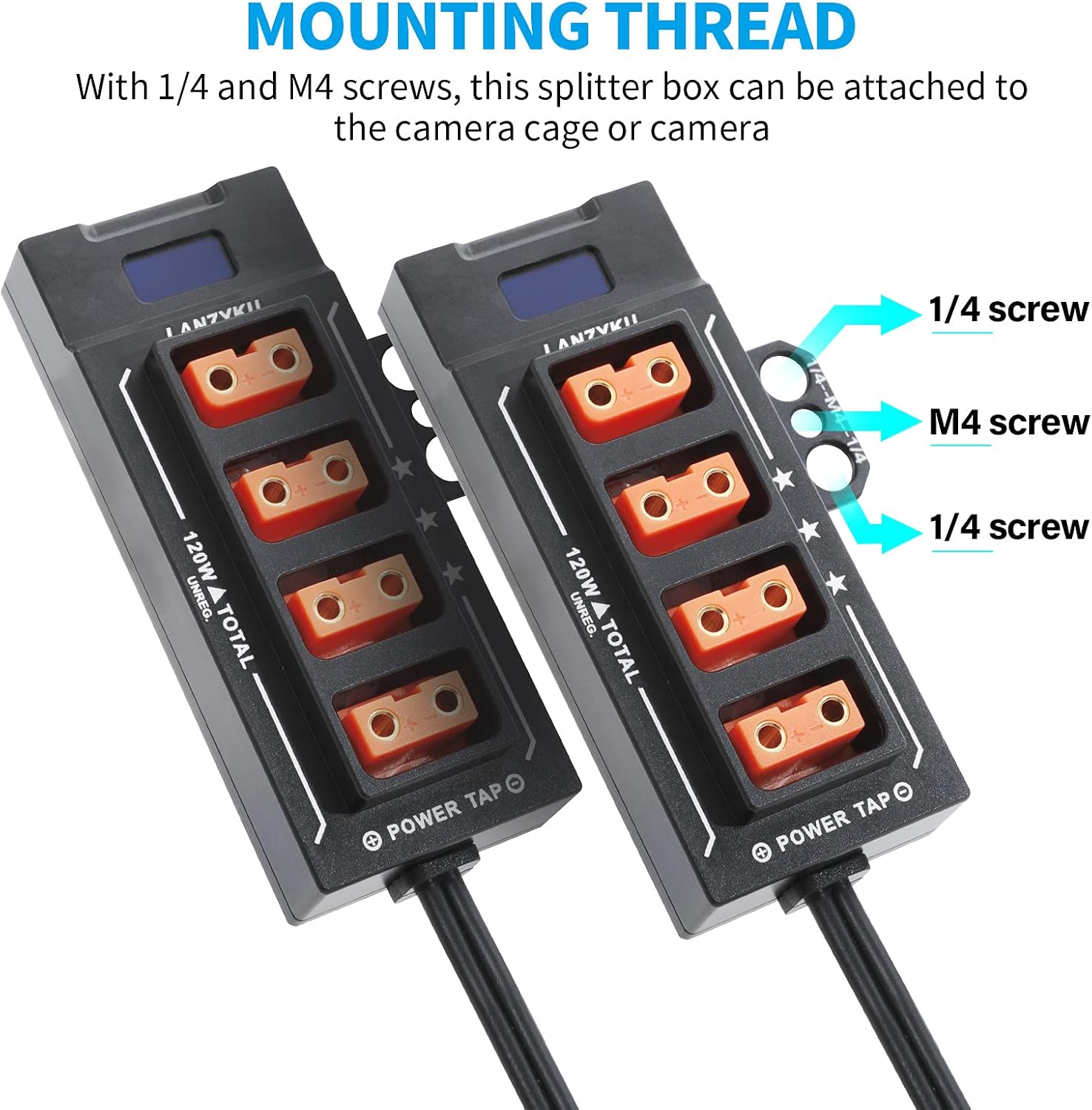

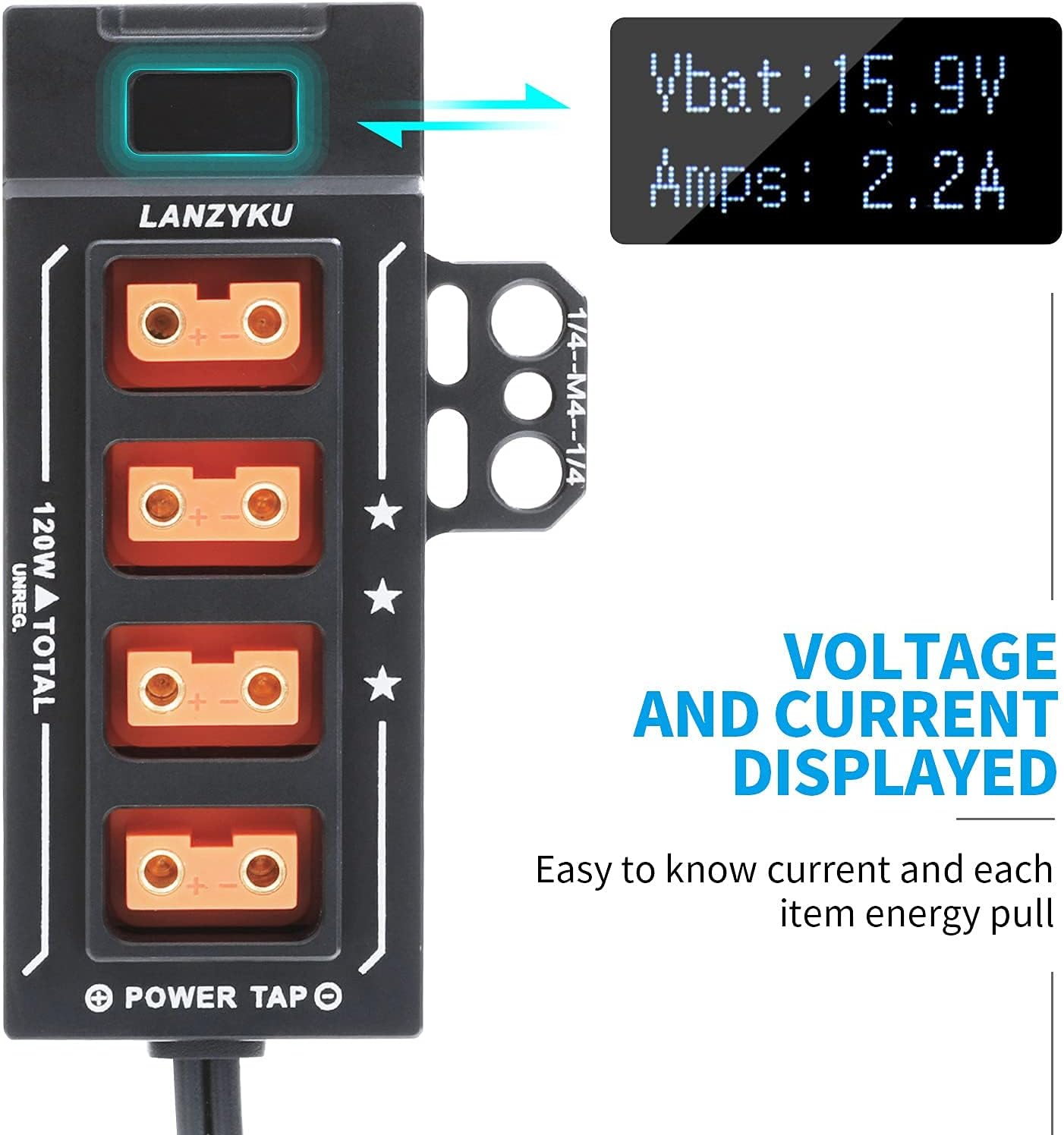

【POWER SUPPLY DISPLAY】0.49-inch Smart OLED. Only display voltage with no load; Voltage and Amps displayed under load. It is more convenient and accurate for you to know the current and each item's energy pull during shooting.【MULTIPROTECT SAFETY SYSTEM】 An industry-standard P-Tap connector. Japan Kawakita Electric Wire. Industrial-grade Hot Swap Controller. The Pro P-Tap splitter accepts DC input power from 11.5 V DC to 17.0 V DC. A built-in power conditioner protects against reverse-polarity connections, electrostatic discharge (ESD), overvoltage, overcurrent, short circuit, and hot-swap functions to ensure the safety of you and the device.【MOUNTING OPTIONS】A sturdy way to mount. With one M4 and two 1/4-20" screw threads, you can mount the P tap hub on the camera or the camera cage.【OPTIMAL CABLE】The cable is resistant to high temperature and folding. When under load, wire losses are minimized. Also we can customize it in various lengths for free.【RELIABLE WARRANTY】Surge voltage will cause unpredictable failures of the equipment. For safe and stable shooting, please use a power supply product with surge protection. At LANZYKU, we believe in our products. That's why we back them all with an 18-month warranty and provide friendly, easy-to-reach support. Know that your investment will be worth it.

Pro Ptap

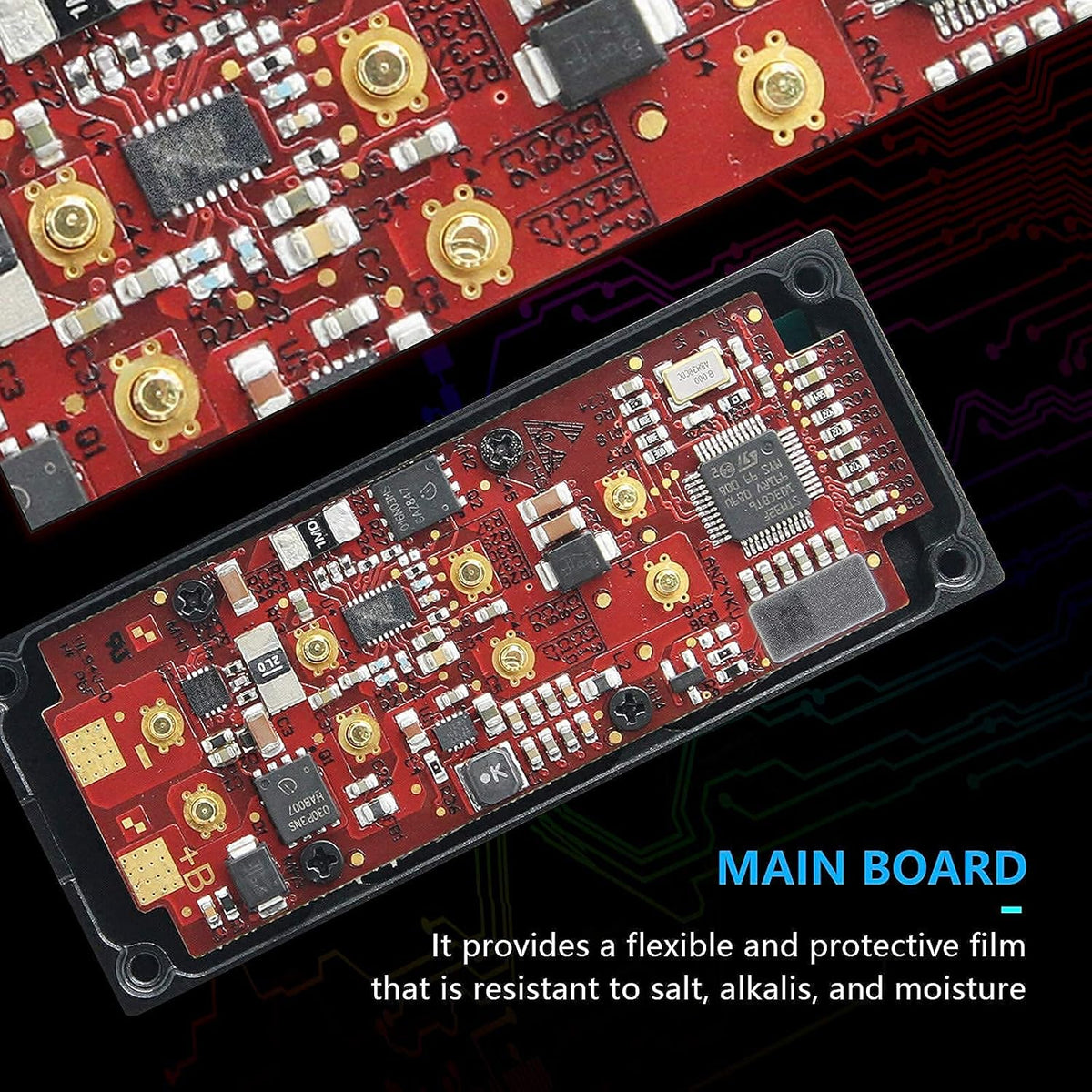

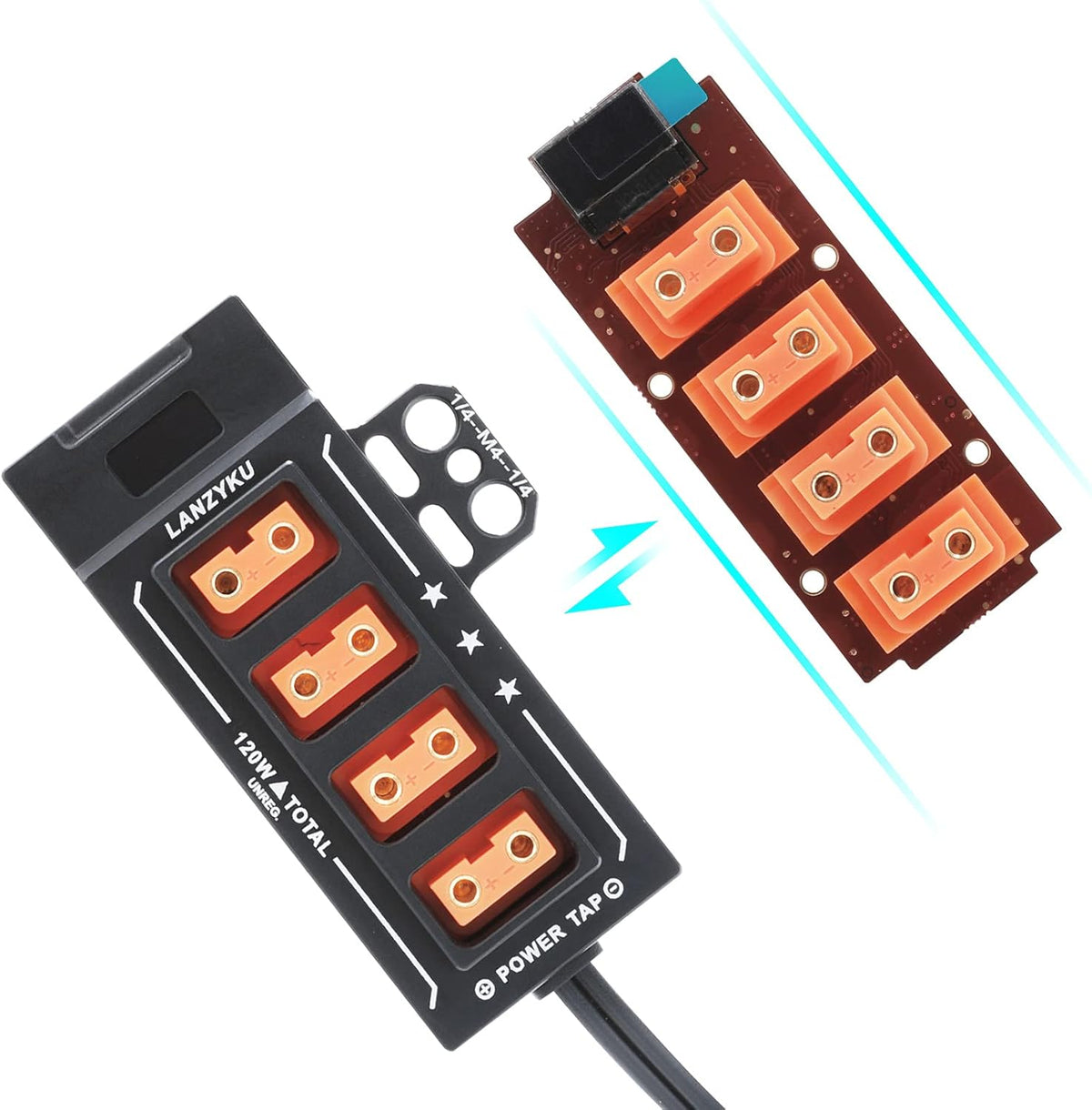

LANZYKU was born to design professional power supplies for demanding cinematographers. LANZYKU’s engineers are very knowledgeable about the power supply of different cameras and have rich experience in camera power supply design. They have designed various power supply accessories for mainstream cameras such as ARRI, RED, SONY, and Panasonic. The Pro P-Tap splitter has sophisticated hardware technology and algorithm, providing the same consistent level of protection throughout its life. It is machined from a single 6061 aluminum. This breakout box is anodized for wear resistance and relieved to reduce weight. OLED is great. Whether it is external or internal/studio work, it can bring a good experience. The high-quality customized LANZYKU Red power supply circuit board provides a guarantee for the safety and stability of the power supply.

AUX OUT

Unreg. Rated 12V(10.5A)~17.0V(7.5A).

Maximum sustained current draw is 125W.

The line loss is only 0.5W when the load power is 83.5W (test environment: 16.8V 5A).

The entire product is ESD compliant.

List of lists

Pro P-Tap splitter with Power Monitor*1 pc

1/4"-20*5/16 Screws*3 pcs

M4*8 Screws*2 pcs

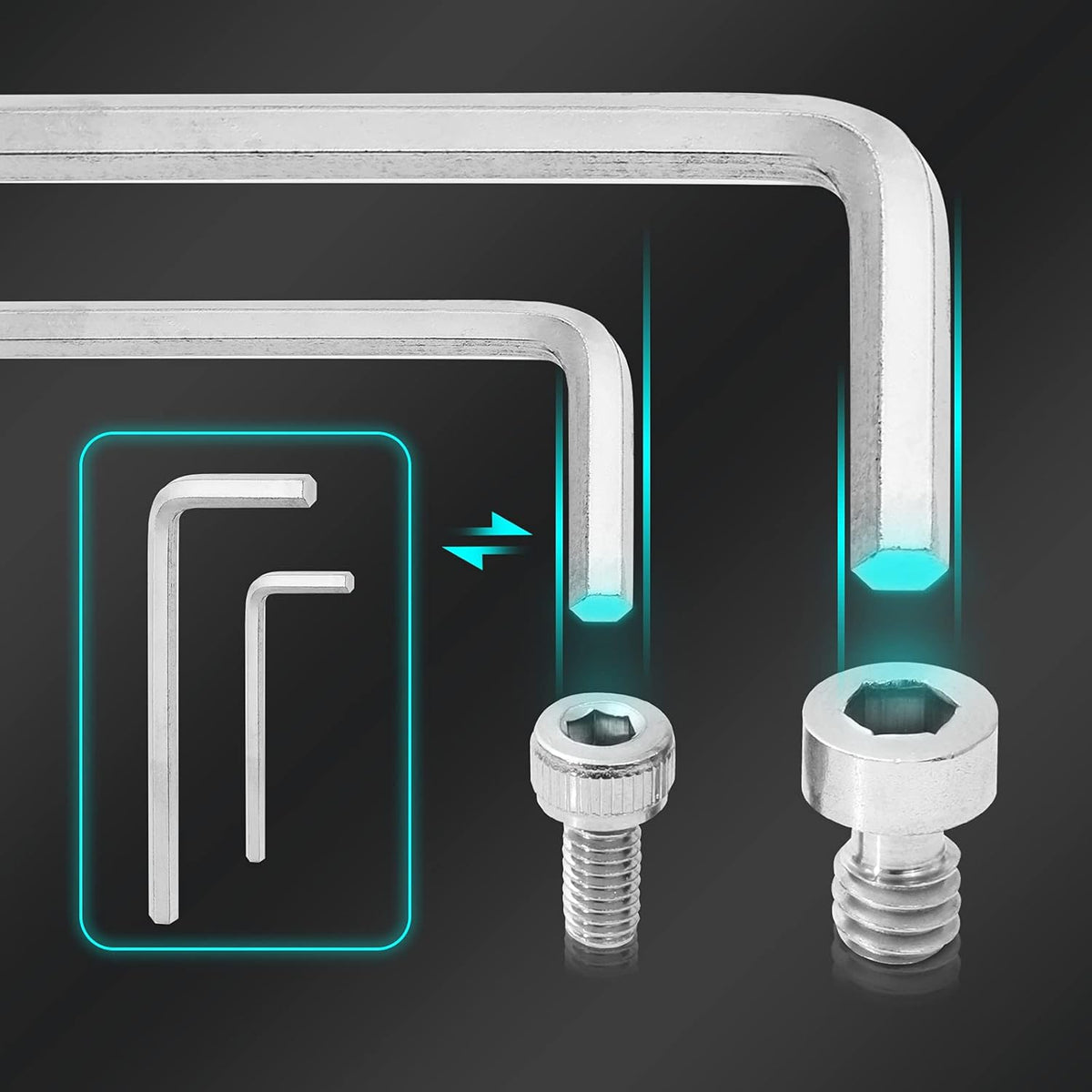

3/16 L Wrench*1pc

4mm Hex Key*1pc

Hook-and-Loop Back Strap*1 pc
