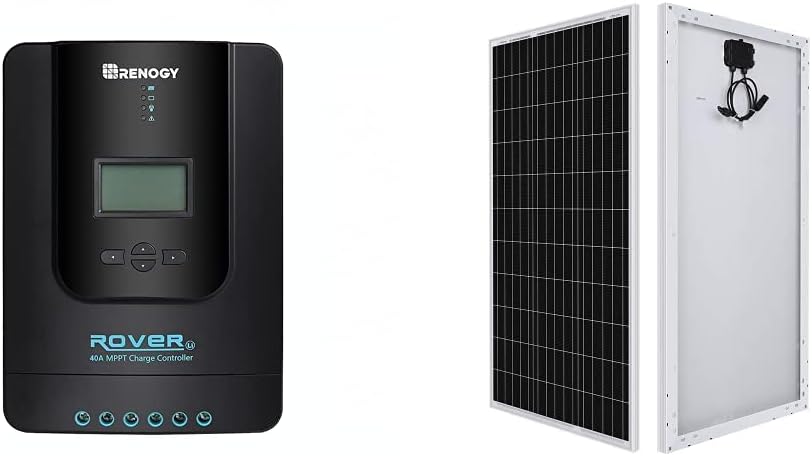

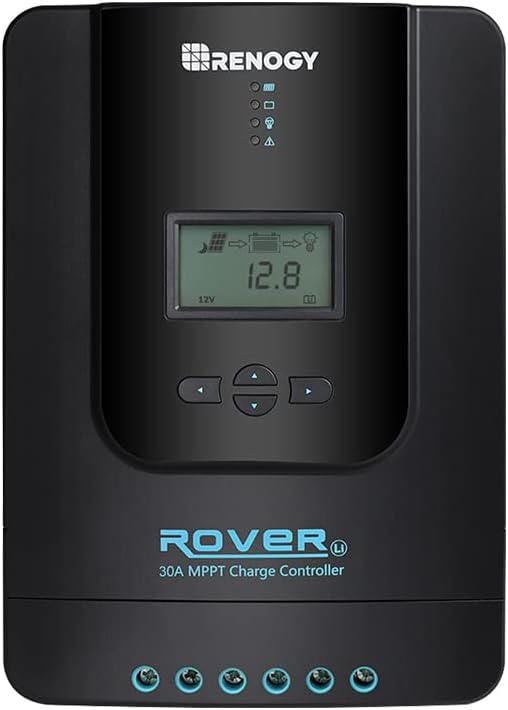

40 Amp MPPT Solar Charge Controller LCD Display Solar Panel Regulator Z275245
Sale price
$28.95
Regular price $90.30
Skip to product information

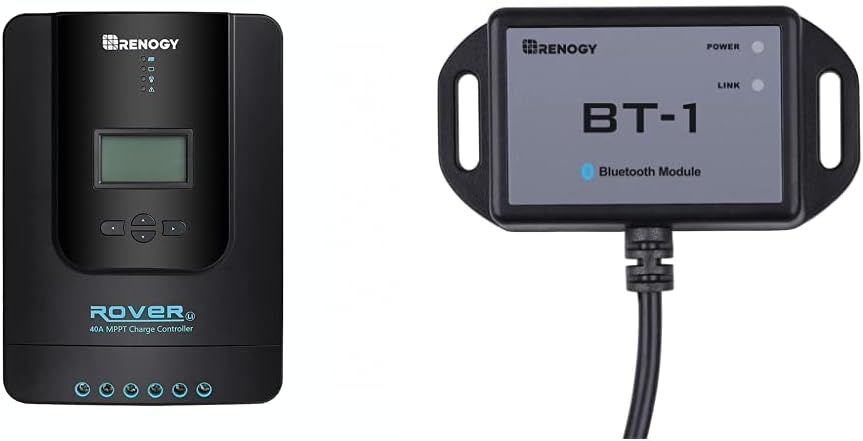

Automatically detect 12V or 24V DC system voltages Innovative MPPT technology with high tracking efficiency up to 99% and peak Conversion efficiency of 98%Die-cast aluminum design for heat dissipation and The capability of measuring the battery's temperature and remote monitoring Customizable charging voltagesCharges over-discharged lithium-ion batteries Error code detection for easy self diagnosesCompatible with various Deep Cycle battery options: Sealed, Gel, Flooded, and Lithium Electronic protection: Overcharging, over-discharging, overload, and short circuit Reverse protection: Any combination of solar module and battery, without causing damage to any component 4-stage charging: Bulk, Boost, Float, and Equalization and LCD screen with programmable charging parametersRS232 port allows the Rover to communicate with the BT-1 Bluetooth module, which can pair with the Renogy DC Home smart phone app
40 Amp MPPT Solar Charge Controller LCD Display Solar Panel Regulator Z275245
Sale price
$28.95
Regular price $90.30
Shipping calculated at checkout.
"Specifications Rated Battery Current :40A Rated Load Current:20A Max. PV Input Short Current:50A Max. Battery Voltage :32V Max. Solar Input Voltage :100VDC Charge circuit voltage drop:≤ 0.26V Discharge circuit voltage drop : ≤ 0.15V Working Temperature :-35°C to +45°C Max. Terminal Size :8AWG Rated Load Current :10% to 90% NC Net Weight :4.41 lb. Overall Dimension :9.37 x 6.81 x 2.85in. "
| Rover Elite 20 amp MPPT Solar Charge Controller | Adventurer Li 30A 12V/24V Negative Ground PWM Charge Controller | Voyager 20A 12V/24V PWM Waterproof Solar Charge Controller | Rover 20/30/40/60/100 Amp 12V/24V/36V/48V MPPT Charge Controller | Wanderer Li 30A 12V PWM Negative Ground Solar Charge Controller | |
|---|---|---|---|---|---|
| Nominal System Voltage | 12/24V DC | 12/24V DC | 12/24V DC | 20/30/40A: 12/24V DC 60/100A: 12/24/36/48V DC | 12/24V DC |
| LCD Display | ✓ | ✓ | ✓ | ✓ | |
| Grounding Type | Negative | Negative | Negative | Negative | Negative |
| Battery Type | gel, Flooded, lithium-iron phosphate (12. 8V), and sealed/AGM | Sealed, Gel, Flooded and Lithium | Sealed/AGM, Gel, Flooded, and Lithium | Sealed, Gel, Flooded, and Lithium | Sealed, Gel and Flooded |
| Temperature Compensation and Intelligent Protection | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote monitoring with Renogy DC Home App | ✓ | ✓ | - | ✓ | ✓ |
| Waterproof | - | - | ✓ | - | - |
| Mounting Options | Surface mount | Surface mount and flush mount | Surface mount | Surface mount | Surface mount |
| Dimensions | 7.85 x 5.12 x 3.02 inches | 6.5x4.5x1.9 inches | 6.08x3.83x1.4 inches | 8.3x5.9x2.3 inches (20A) 9.4x6.8x2.9 inches (40A) 11.22 x 8.07 x 4.00 In (60A) 12.00 x 17.44 x 4.35 In (100A) | 6.45 x 4.31 x 1.76 inches |
